NIR超小型分光器 RedBullet

新製品

メーカー：OtO

食品や紡績品の検査と分析アプリケーション向け小型分光器

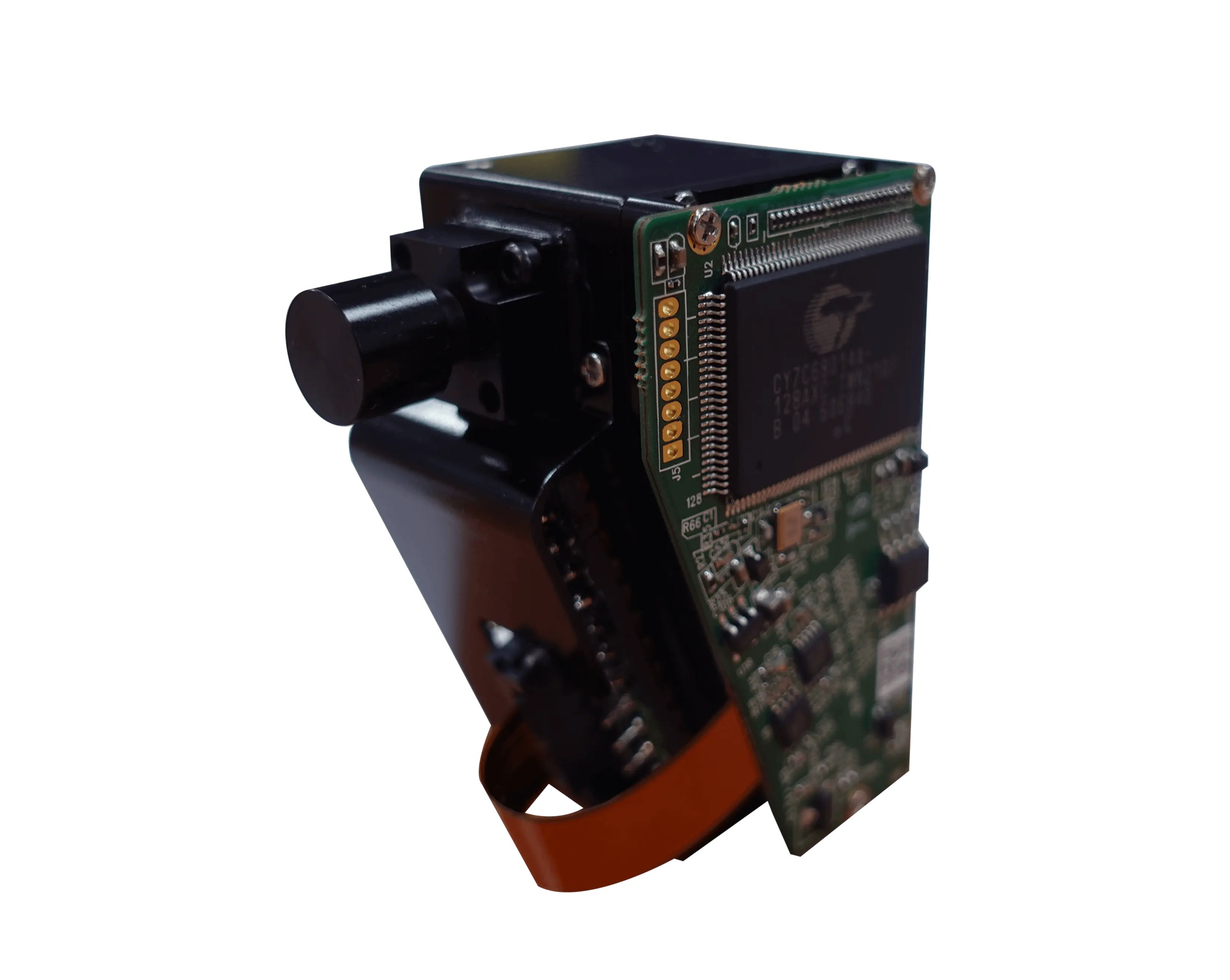

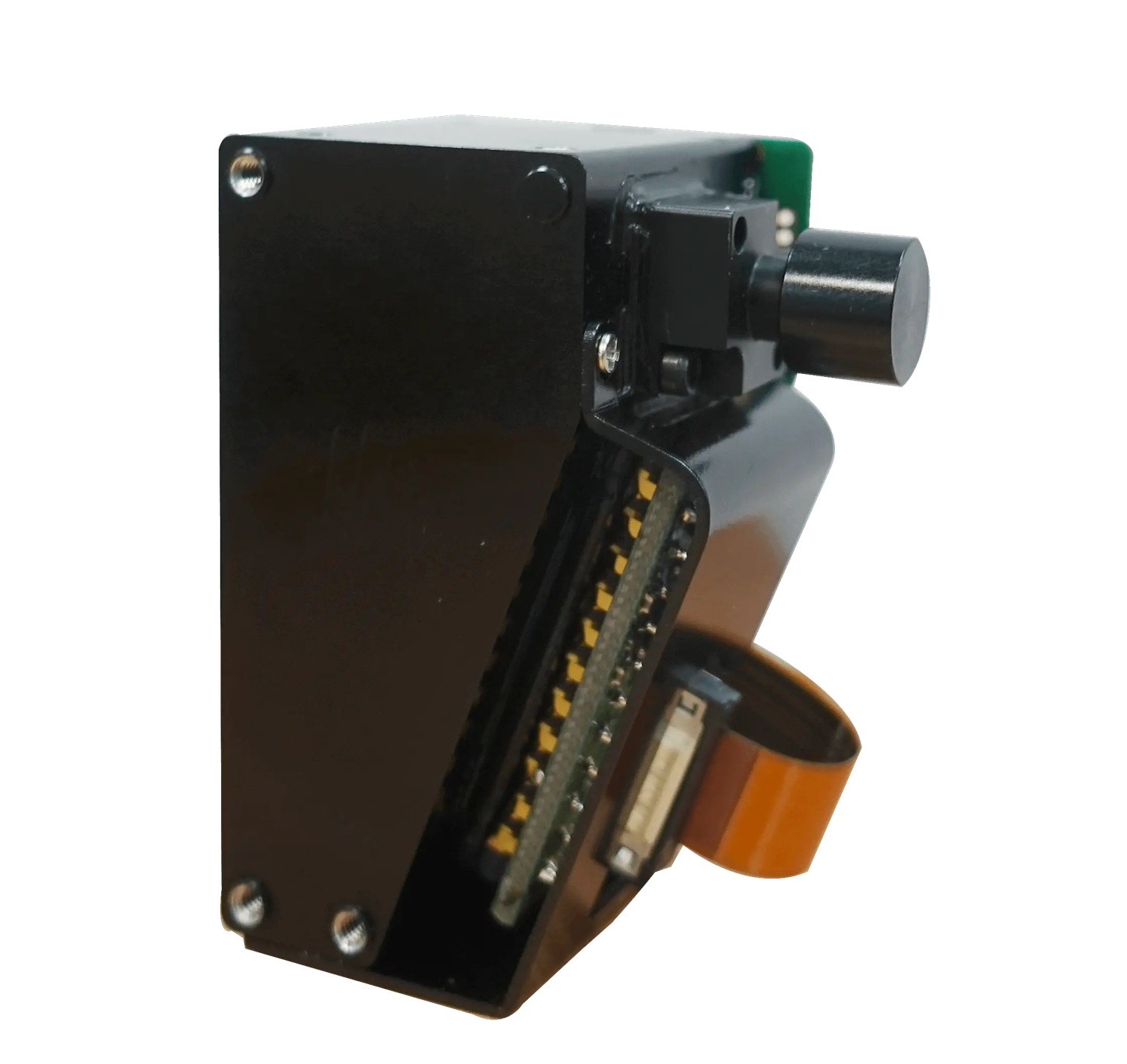

Redbulletは、8bitsマイクロコントローラを組み合わせたCMOSセンサが搭載されたNIR領域用小型分光器です。CPUに8051を採用することで測定速度を高速化し、高感度かつ優れた熱安定性を確保した測定が可能です。

お問い合わせフォーム

対象分野

照明・ディスプレイ

特長

新凹面反射鏡光路設計により超小型分光器を実現
光学分解能：10 nm ～ 16 nm(スリット：50 um)
InGaAs 128/256pixels センサと、高速測定を実現させるシングルチッププロセッサを搭載

RedBulletデータシート

お問い合わせ

技術情報

基本仕様

型番	RB4524	RB4564
波長範囲	900 - 1700 nm
スリット幅	25 um / 50 um / 100 um
分解能	13.5 mm @50 umスリット	8.5 nm @25 umスリット
検出器	128 ピクセル InGaAs	256 ピクセル InGaAs
SNR	High Gain：2500 Low Gain：6500	High Gain：3000 Low Gain：6700
ダイナミックレンジ	High Gain：6500 Low Gain：8200	High Gain：7300 Low Gain：9300
ダークノイズ	High Gain：10 Low Gain：8	High Gain：9 Low Gain：7
ノイズ	6 us - 1 sec
寸法 (L x W x H)	51.4 x 36.4 x 29 mm
光ファイバインターフェース	SMA905
データ送信インターフェース	Micro USBまたはUART
