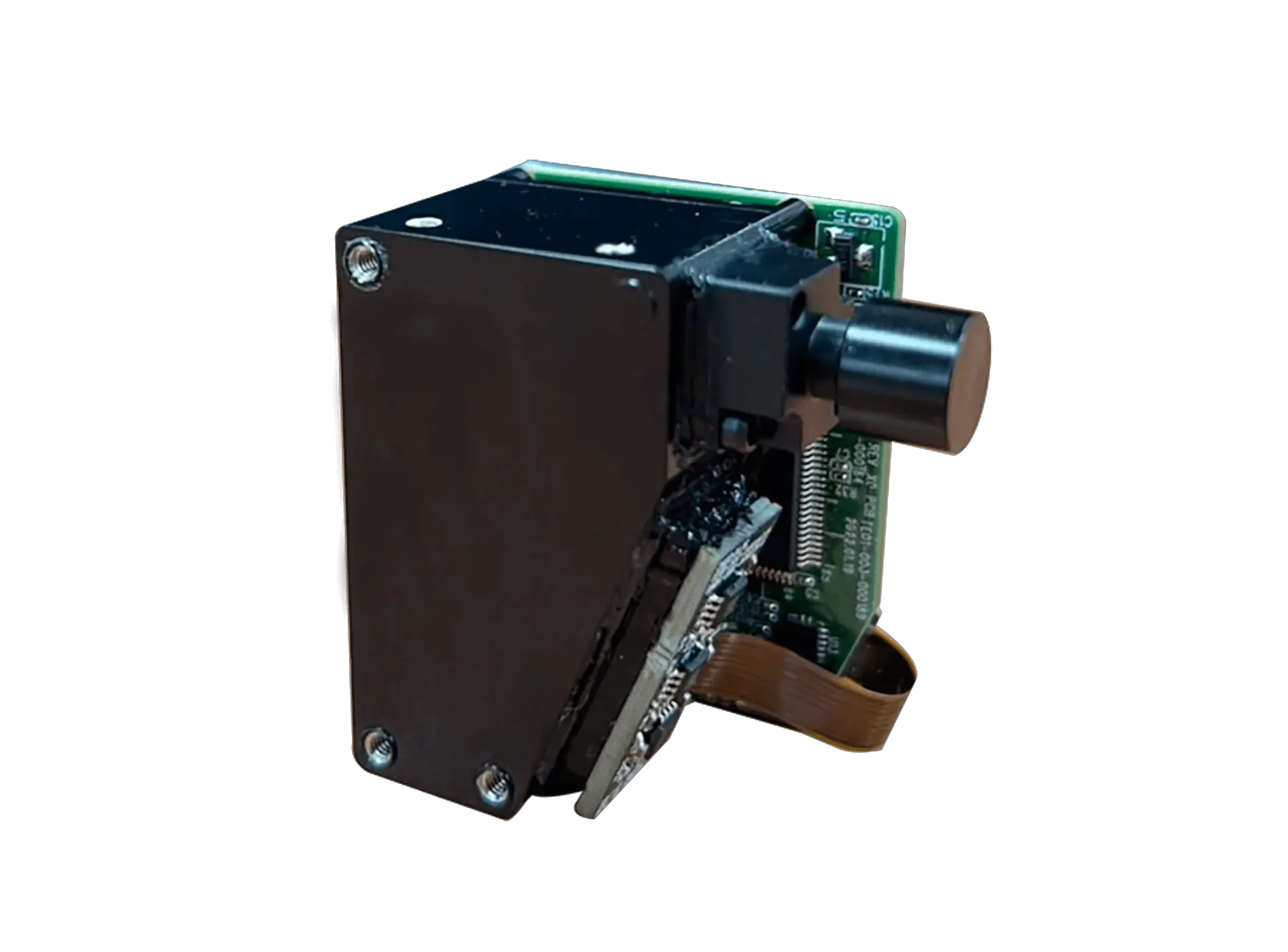

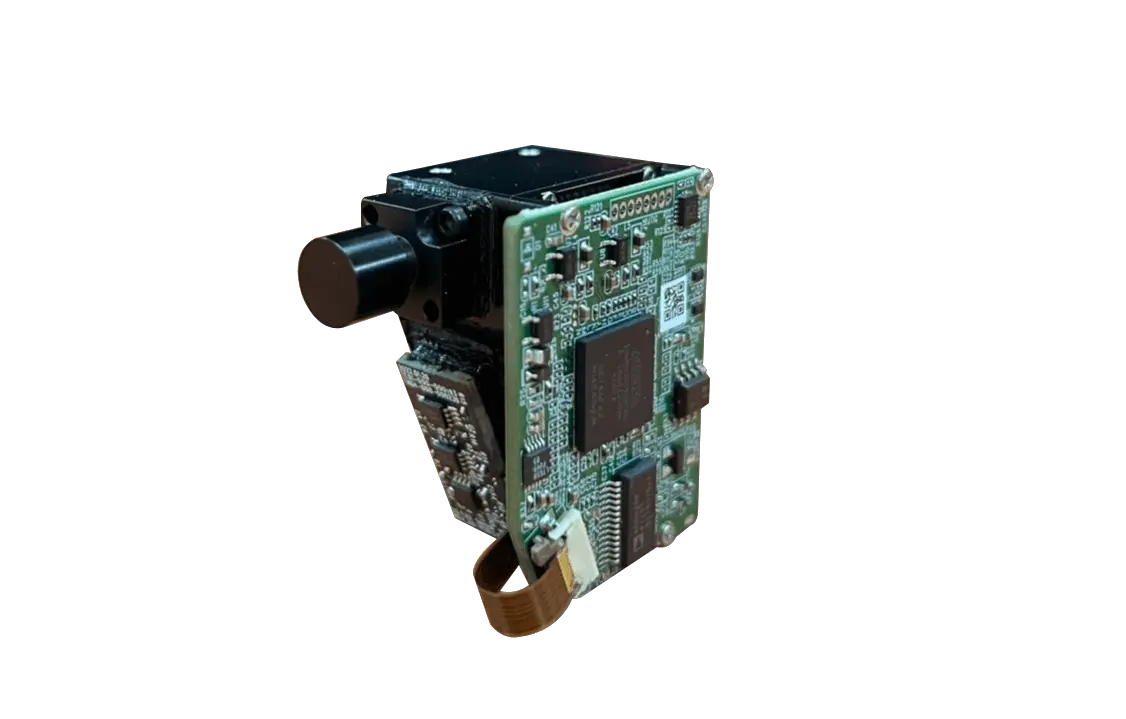

UV-VIS超小型分光器 SilverBullet

新製品

メーカー：OtO

水質検査、色測定などのアプリケーション向け小型分光器

Silverbulletは、8bitsマイクロコントローラを組み合わせたCMOSセンサが搭載されたUV-VIS領域用小型分光器です。CPUに8051を採用することで測定速度を高速化し、高感度かつ優れた熱安定性を確保した測定が可能です。

お問い合わせフォーム

対象分野

照明・ディスプレイ

特長

新凹面反射鏡光路設計により超小型分光器を実現
光学分解能：1.7 nm ～ 6.5 nm(スリット：25 um)
CMOS1024ピクセルセンサと、高速測定を実現させるシングルチッププロセッサを搭載

SilverBulletデータシート

お問い合わせ

技術情報

基本仕様

型番	SB3134/4134	SB4130
波長範囲	180 - 1100 nm の領域でカスタマイズ
スリット幅	25 um / 50 um / 100 um
分解能	1.7 - 10.8 nm (選択したグレーティングとスリットの組み合わせで決定)
検出器	1024ピクセル CMOS
SNR	350
ダイナミックレンジ	5200
ノイズ	12.5
露光時間	6 us (センサ制御は10 mHz～) - 24 sec 21 us (センサ制御は2.5mHz～) - 24 sec
寸法 (L x W x H)	40 x 36.3 x 25.1 mm	49 x 43 x 28.5 mm
光ファイバインターフェース	SMA905
データ送信インターフェース	Micro USBまたはUART
